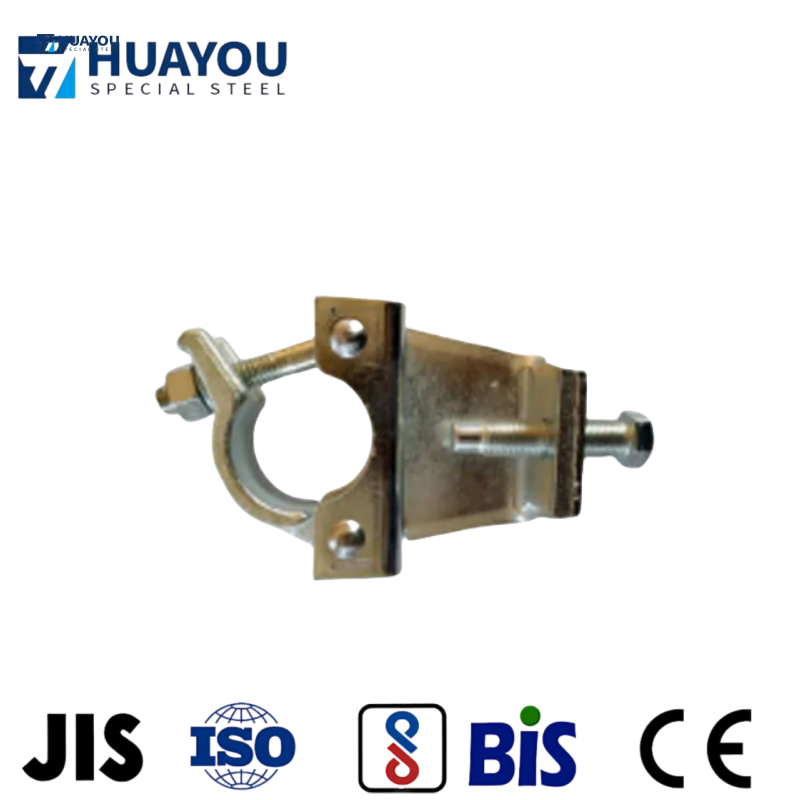

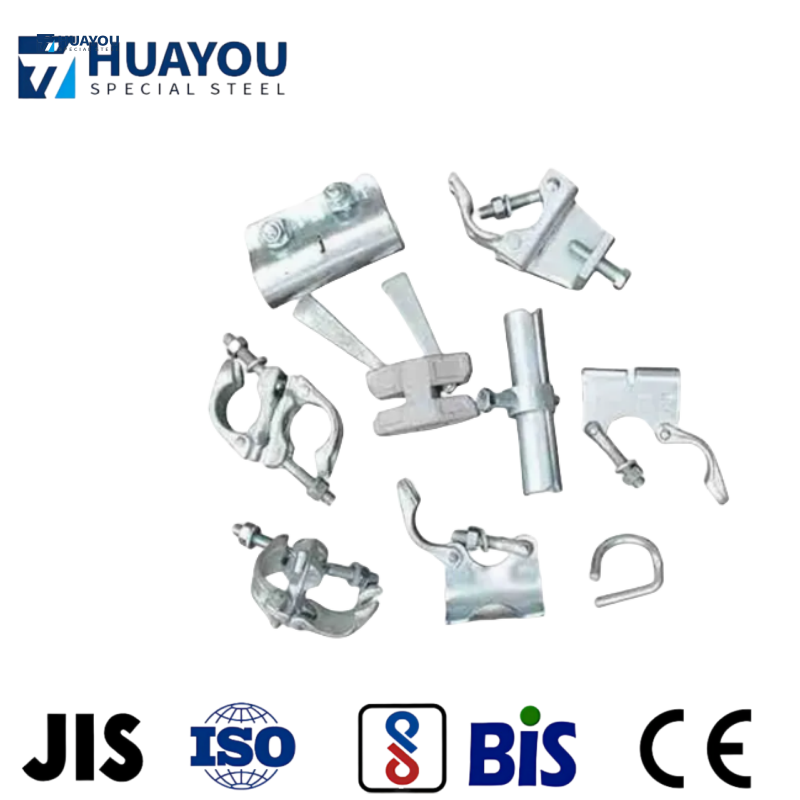

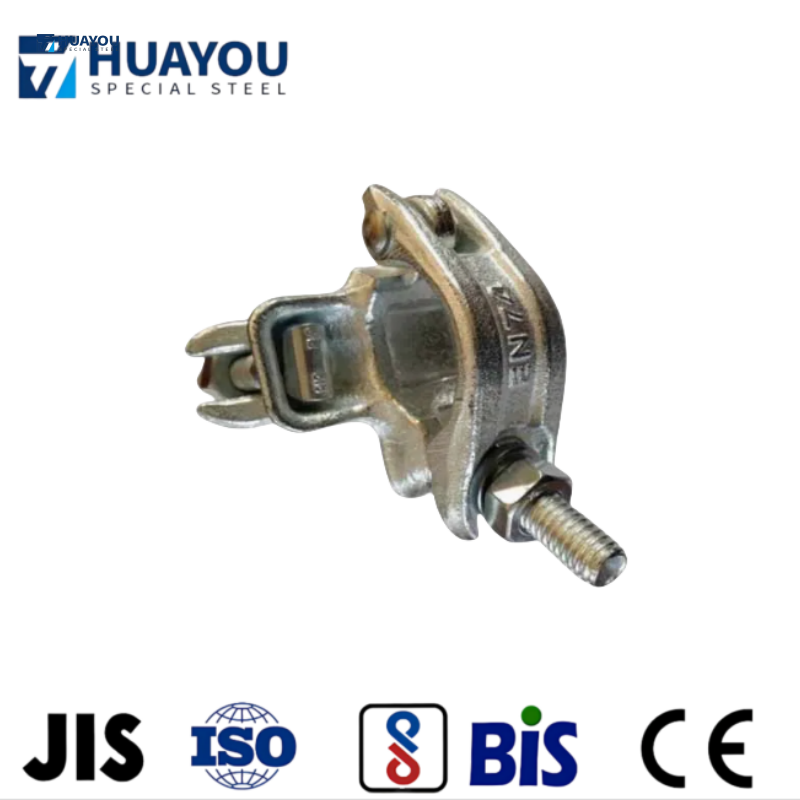

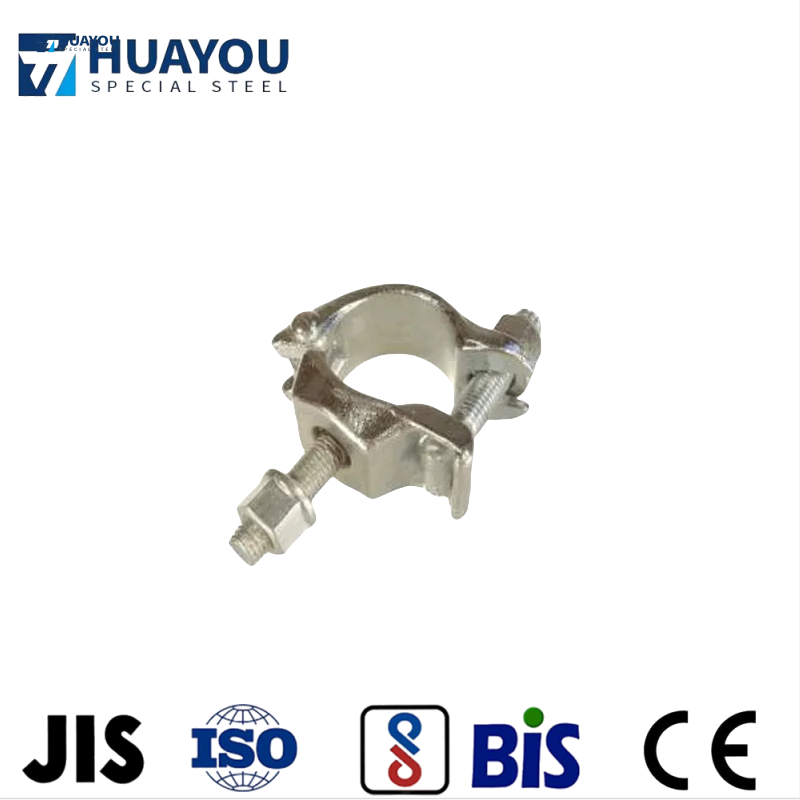

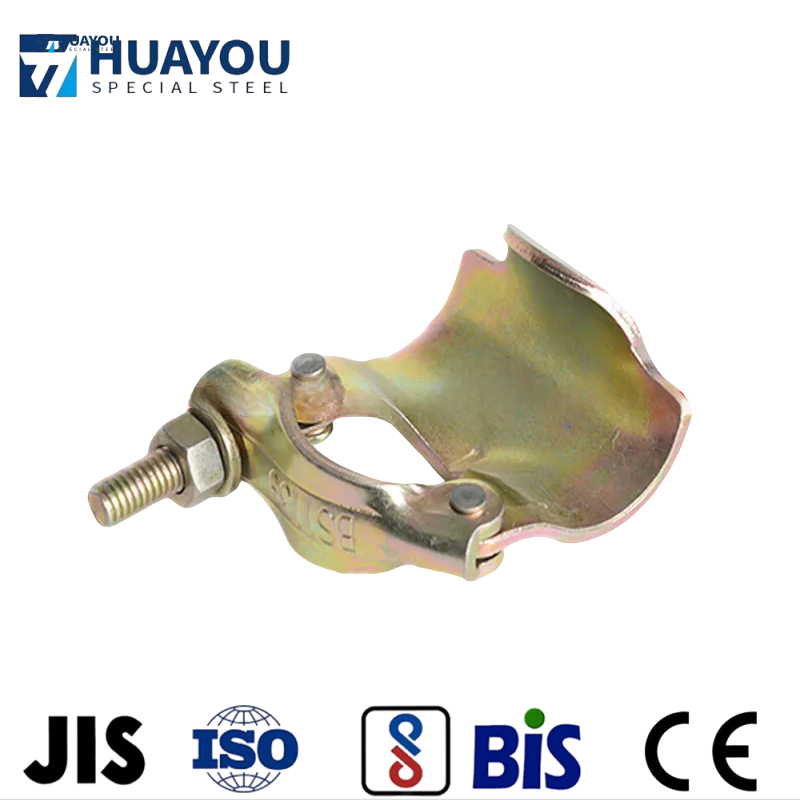

Scaffolding Coupler

Couplers have become an indispensable component in the field of building and construction due to their strong connectivity, easy installation, high flexibility, good economy, strong adaptability, easy maintenance, safety, reliability and diversity. With its various types and wide range of applications, couplers can play an important role in various construction projects.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 18363561850

+86 18363561850

+86 18363561850

sales1@huayousteels.com

Product Description

Scaffolding double couplers, also known as right-angle couplers or fixed clamps, are connectors that join two scaffold tubes at a 90 degree angle.
They are used in a variety of scaffolding construction types, including staging, lighting rigs, and guard rails. Double couplers are available in pressed or drop forged materials.
They can be HDG, zinc plated or golden zinc plated surface finish.

Commodity	Standard	Type	Size	Weight
	JIS/Korea Pressed	Swivel Coupler	48.648.6mm 48.660mm	560g/580g 600g/630g
	JIS/Korea Pressed	Fixed Coupler Double Coupler	48.648.6mm 48.660mm	560g/580g 600g/630g
	JIS/Korea Pressed	Single Coupler	48.6*48.6mm	300g
	BS1139/EN74 Pressed	Swivel Coupler	48.3*48.3mm	0.98-1.0kg
	BS1139/EN74 Pressed	Fixed Coupler Double Coupler	48.3*48.3mm	0.8-0.85kg
	BS1139/EN74 Drop Forged	Swivel Coupler	48.3*48.3mm	1.12-1.15kg
	BS1139/EN74 Drop Forged	Fixed Coupler Double Coupler	48.3*48.3mm	0.98-1.0kg
	BS1139/EN74 Drop Forged	Board Retainning Coupler	48.3*48.3mm	0.6-0.63kg
	BS1139/EN74 Drop Forged	Putlog Coupler	48.3*48.3mm	0.6-0.63kg
	BS1139/EN74 Drop Forged	Girder Coupler	48.3*48.3mm	1.45-1.5kg

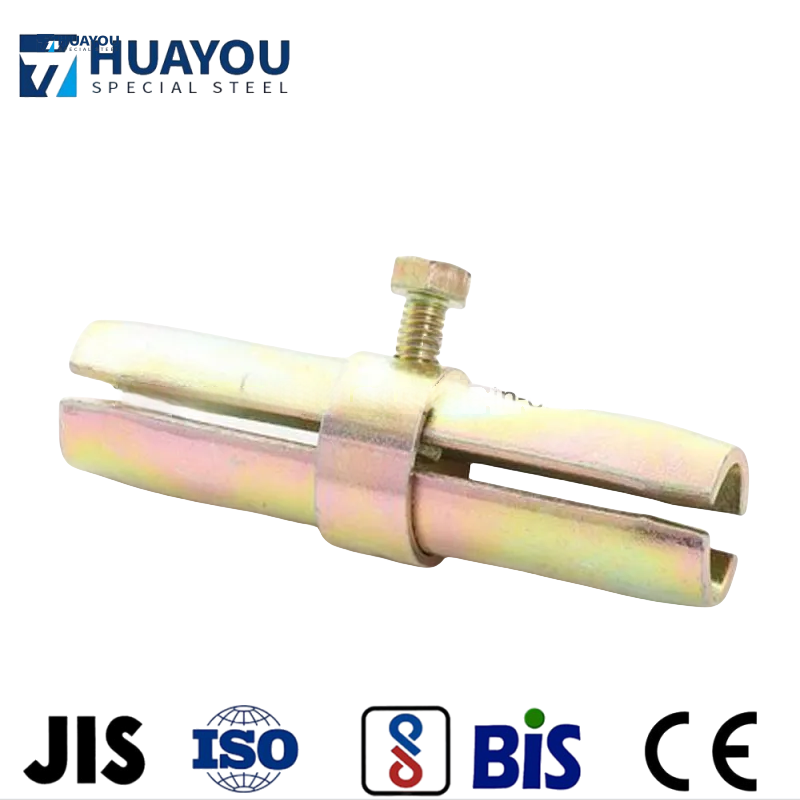

	BS1139/EN74 Pressed	Sleeve Coupler& Joint Pin Coupler	48.3*48.3mm	0.92-0.98kg 0.62-0.65kg
	BS1139/EN74 Pressed	Ladder Coupler	48.3*48.3mm	0.46-0.5kg

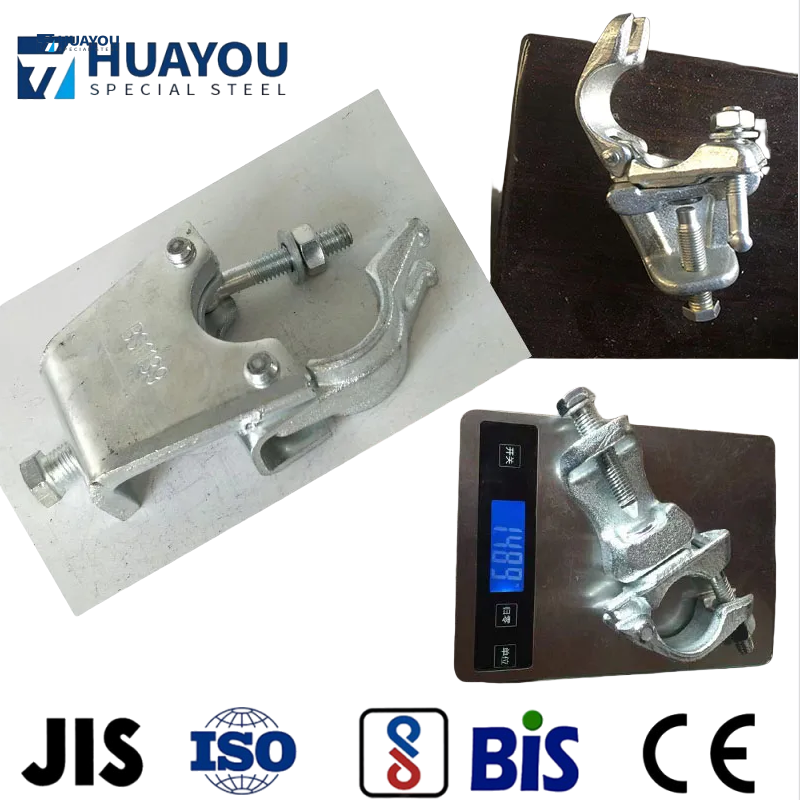

Product Show

The details about the Scaffolding Coupler

The scaffolding coupler is used by drop forged or pressed.it's for joint steel pipe or other scaffolding items.

2.Light duty scaffolding coupler with replaceable T-bolts and collar nuts,easy to fasten securely to steel pipes.

3.Drop forged Q235 steel scaffoling double couplers provide higher strength and toughness than pressed or casting iron couplers.

4.The double couplers are galvanized to protect against rust and corrosion,which has longer working life.
5.Tube and coupler scaffolding may be one of the most labor intensive scaffolding system,but the return on time invested is unlimited.It's adaptable to any building situation:high or low,inside or outside,round or straight,standard or irregular shapes.

Factory Tour

Application

Packing And Delivery

Certificate

Customer Visit

Customer Reviews

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
