Scaffolding Cuplock System

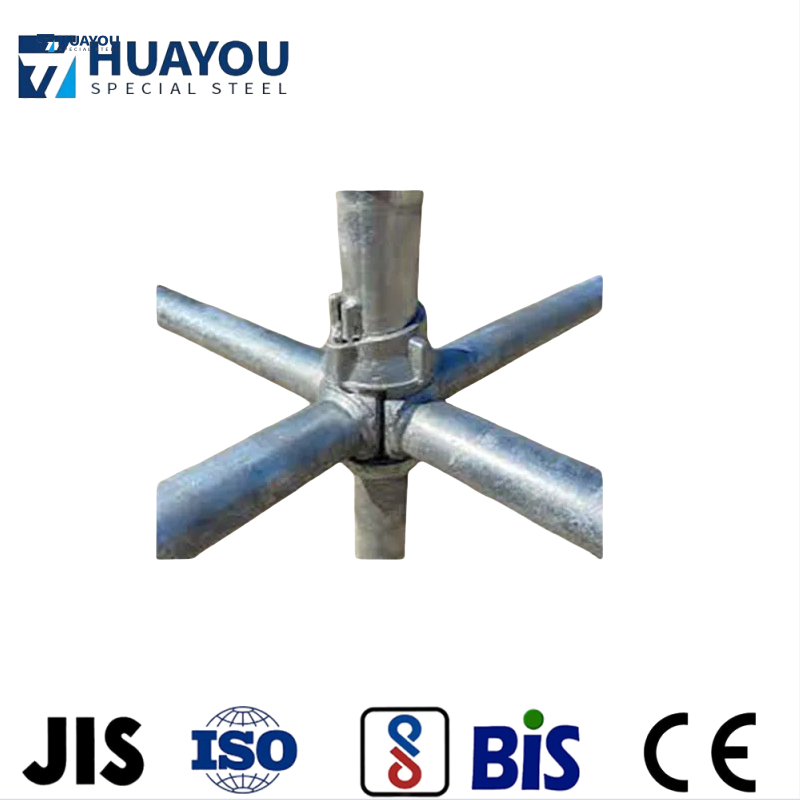

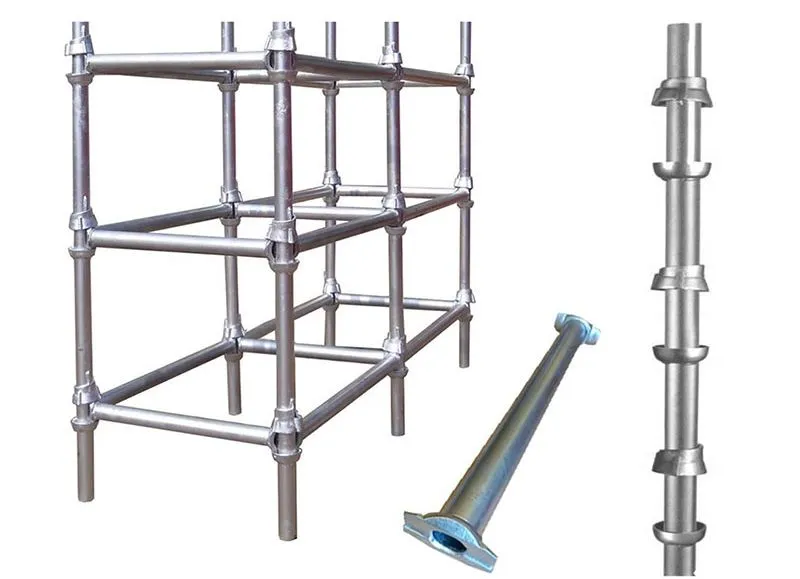

Cuplock Scaffolding System, is a scaffold system that uses the "Cup" and "Blade" to lock the vertical/standard and horizontal/ledger together, and lock the blades by twisting the cup. This Cuplock Scaffold System uses no nut, bolt or wedge. Cuplock's Scaffolding System node-point is revolutionary, and makes it faster and easier than any other scaffolding system.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 18363561850
+86 18363561850
+86 18363561850
sales1@huayousteels.com
Contact Us

Product Description

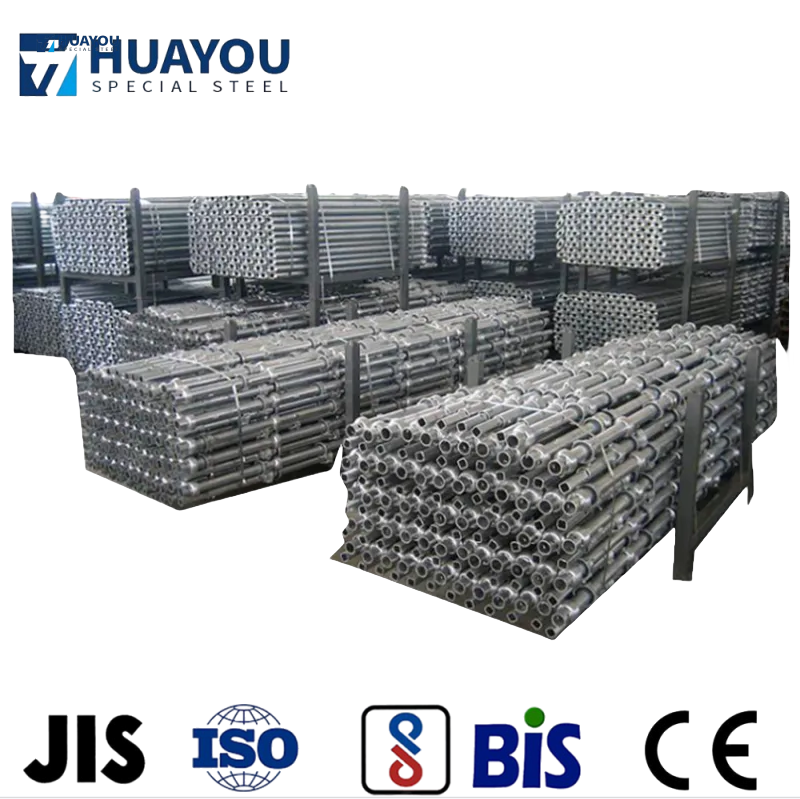

Standard/vertical:

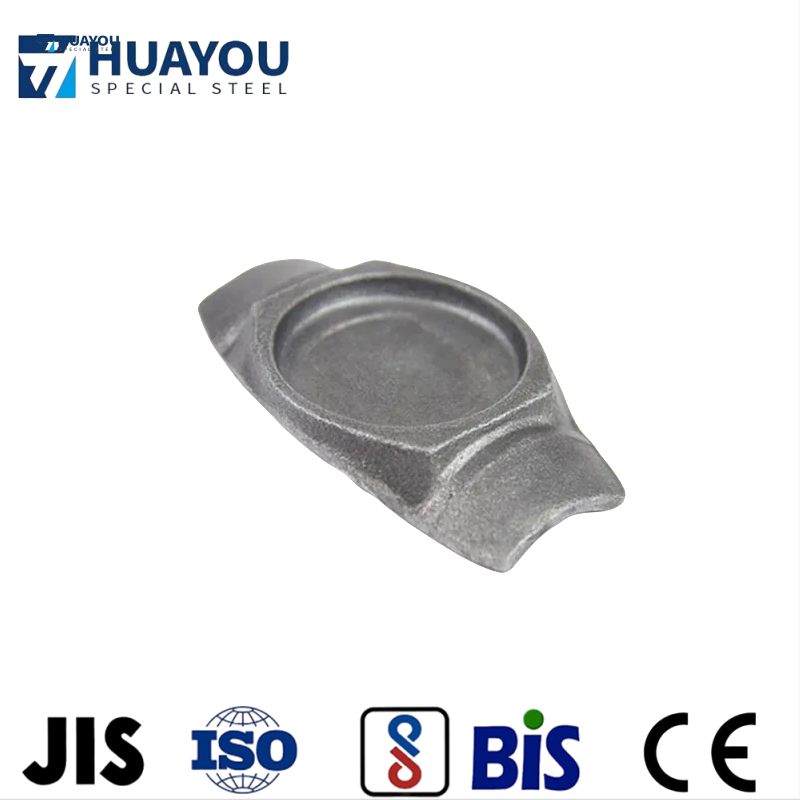

These items form the vertical members of the scaffold and are made from 48.3 diameter x3.2mm thick high grade steel Tube .They incorporate a fixed bottom cup which is welded at 50mm untervals, with a capative moving top cup that can secure up to four components .

1)CupLock Scaffolding Vertical/Standard

NAME  LENGTH(M)Normal SIZE(MM)Surface treatmentMaterial Steel Grade
Vertical/StandardL=0.5OD48.3, THK 2.5-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=1.0OD48.3, THK 2.5-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/Standard L=1.5OD48.3, THK 2.5-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=2.0OD48.3, THK 2.5-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=2.5OD48.3, THK 2.5-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=3.0OD48.3, THK 2.5-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355


Cuplock Ledger / Horizontal

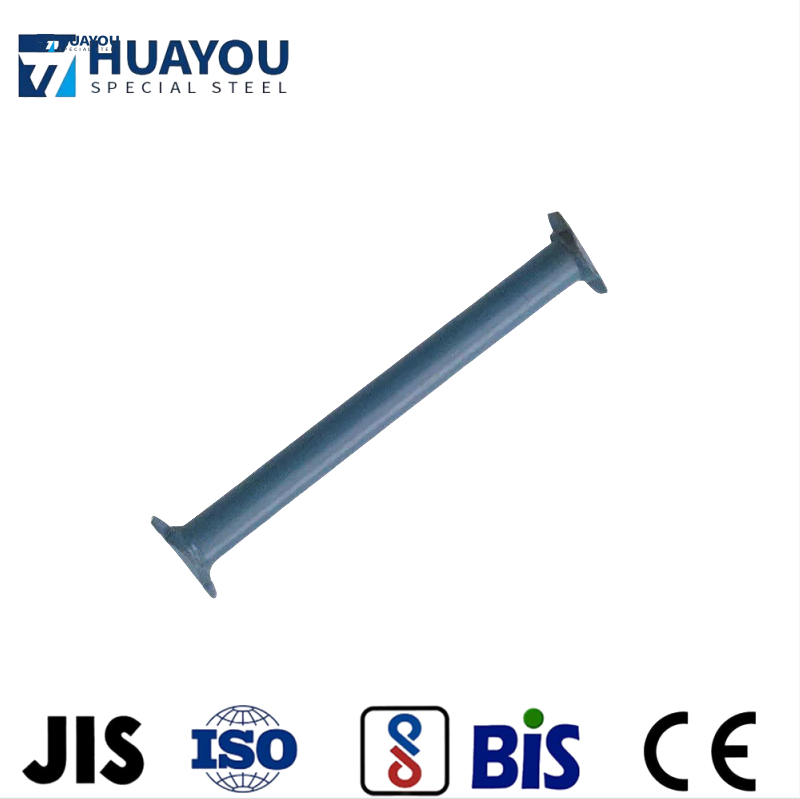

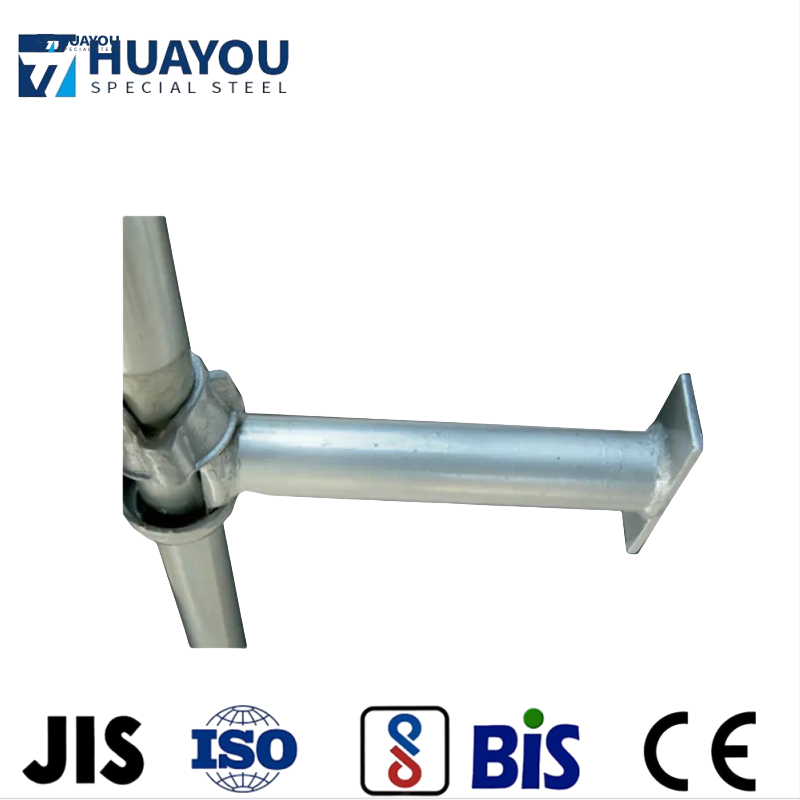

Cuplock Ledgers are manufactured from 48.3*3.0mm scaffolding tube with forged steel blade ends which locate into bottom cups of the standards and are locked in place by the corresponding top cups. Ledgers are available in various lengths to provide the desired grid specification for scaffolding or formwork.


2)CupLock Scaffolding Horizontal Ledger

NAME LENGTH(M)SIZE(MM)Surface treatmentCustomized
Horizontal/LedgerL=0.6/0.65/0.7OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=0.9/0.95OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=1.2/1.219OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=1.5/1.524OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=1.8/1.829OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=2.1OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=2.4OD48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes

Cuplock Brace / Diagonal
Cuplock braces are manufactured from 48.3*3.2mm scaffolding tube and each brace has two swivel blade ends. Their function is to provide transverse and longitudinal bracing to scaffold structures.

3)Cup Lock Diagonal Bracing

NAME  LENGTH(M)       SIZE(MM)Surface treatmentCustomized
Diagonal BraceL=0.9*1.5OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.2*1.5 OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.5*1.5  OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.8*1.5  OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=2.1*1.5  OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.8*2.0   OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=2.4*2.0  OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes


Product Show


Factory Tour


Application


Packing And Delivery


Certificate

  • 微信图片_20250323162842.png
  • 微信图片_202503171557201.jpg
  • 微信图片_20250323162848.png
  • 微信图片_20250317155720.jpg

Customer Visit

Customer Reviews

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of  steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
