Scaffolding Ringlock System
As a modular scaffolding system, it can be used in different projects as external or internal support. Its advantages like HeavLoads,Stable, Flexible, Easy Assembling make it widely used at home and abroad.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 18363561850
+86 18363561850
+86 18363561850
sales1@huayousteels.com
Contact Us

Product Description

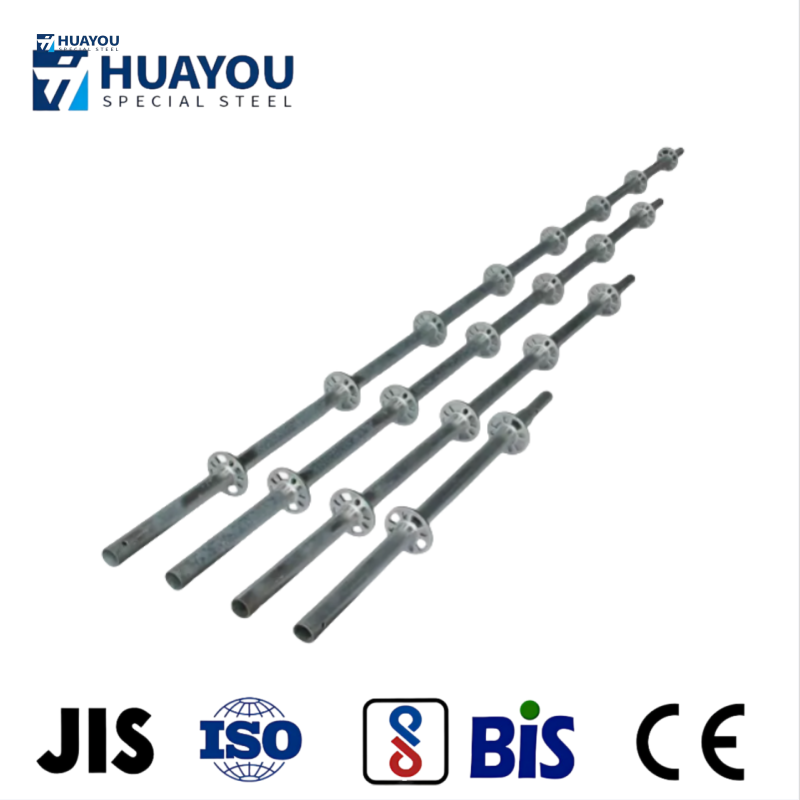

Scaffolding Ringlock Standards are the vertical members of ringlok scaffolding.They provide the vertical support for scaffolding. Were made of high strength structural steel with hot dip galvanizing finish.The ringlock standard bears the loads from the scaffold down to the earth.

NAME  LENGTH(M)Normal   SIZE(MM)Surface treatmentMaterial Steel Grade
Vertical/StandardL=0.5  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=1.0  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=1.5  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=2.0  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=2.5  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=3.0  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355
Vertical/StandardL=4.0  OD48.3/60.3, THK 3.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedQ235/Q355


Scaffolding Ringlock Ledgers are the horizontal members of ringlok scaffolding.They provide horizontal support for loads and planks.Ledgers are connected to the vertical Standards using the cast end with the captive wedge, which can be used as horizontal support for planks or act as guardrail edge protection. This connection is extremely strong and prevents the possibility of loose components

NAME LENGTH(M)SIZE(MM)Surface treatmentCustomized
Horizontal/LedgerL=0.6/0.65/0.7OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=0.9/0.95OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=1.2/1.219OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=1.5/1.524OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=1.8/1.829OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=2.1OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Horizontal/LedgerL=2.4OD42/48.3, THK 2.0-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes

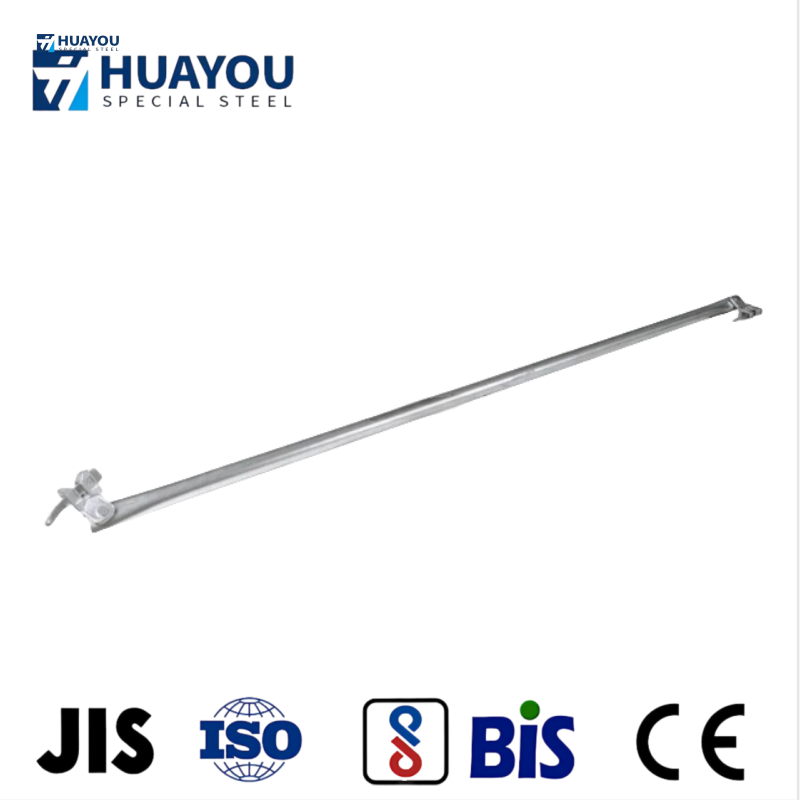

Ricklock Diagonal Braces are used for the lateral bracing ringlok scaffolding.Bay braces can also be used as obtuse angle mid rail and top pr hand rails in conjunction with our stair system.Were made of high strength structural steel with hot dip galvanizing finish.

NAME  LENGTH(M) SIZE(MM)Surface treatmentCustomized
Diagonal BraceL=0.9*1.5OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.2*1.5OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.5*1.5OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.8*1.5OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=2.1*1.5OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=1.8*2.0OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
Diagonal BraceL=2.4*2.0OD33/42/48.3, THK1.8-4.0Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes


Ringlock Scaffolding Base Collars are designed to "base out" the HS Ringlock scaffold system sitting on top of the screw jack creating a lower node point,were made of high strength structural steel with hot dip galvanizing finish.

NAMELENGTH(MM)      SIZE(MM)Surface treatmentCustomized
Base Collar             250/255/300        48.3*3.2Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes


Ringlock Adjustable Base Jacks screw is made of high strength steel bar structure and equipped with cast or forged scaffolding jack nut, suitable for scaffolding systems such as ring lock scaffolding system, cup lock scaffolding system, kwikstage scaffolding system, pipe joint scaffolding system, etc.

Name  LENGTH(MM)          SIZE(MM)Surface treatmentCustomized
Base JackL=450/600/700/800/1000 38*5, 150*150*5Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes
U-Head JackL=450/600/700/800/1000       38*5,150*150*50*50Hot Dip Galv./ Electro-Galv./Power coated/PaintedYes

Product Show



Factory Tour


Application


Packing And Delivery


Certificate

  • 微信图片_20250323162842.png
  • 微信图片_202503171557201.jpg
  • 微信图片_20250323162848.png
  • 微信图片_20250317155720.jpg

Customer Visit

Customer Reviews

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of  steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
