Carbon Steel Threaded Rod Adjustable Leveling Scaffolding Prop Screw Jack
Scaffolding screw jack base is made of screw tube and sheet metal plate, and assembled with casted nut. The application is support scaffolding system, ringlock scaffolding system, cuplock scaffolding system, kwikstage scaffolding system, haki scaffolding system, tube&clamp scaffolding system and also formwork system, adjusting the construction system height flexibly.

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 18363561850
+86 18363561850
+86 18363561850
sales1@huayousteels.com
Contact Us

Product Description

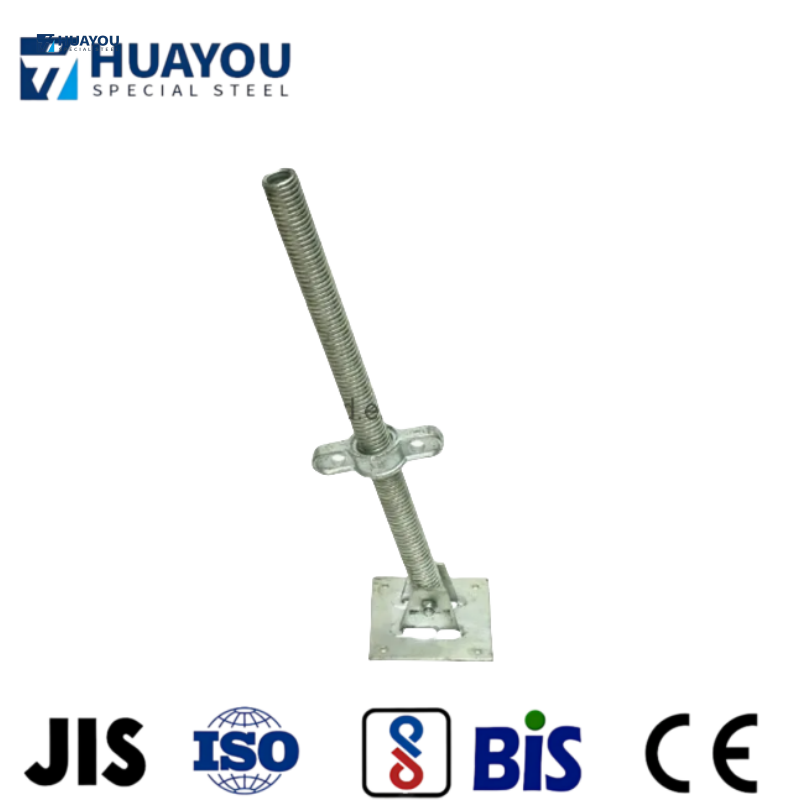

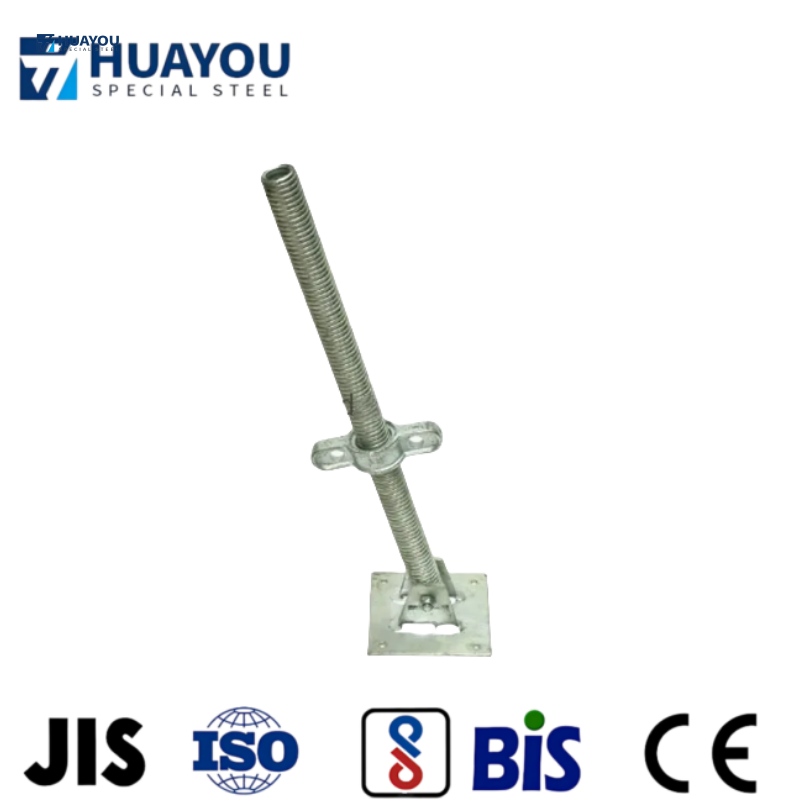

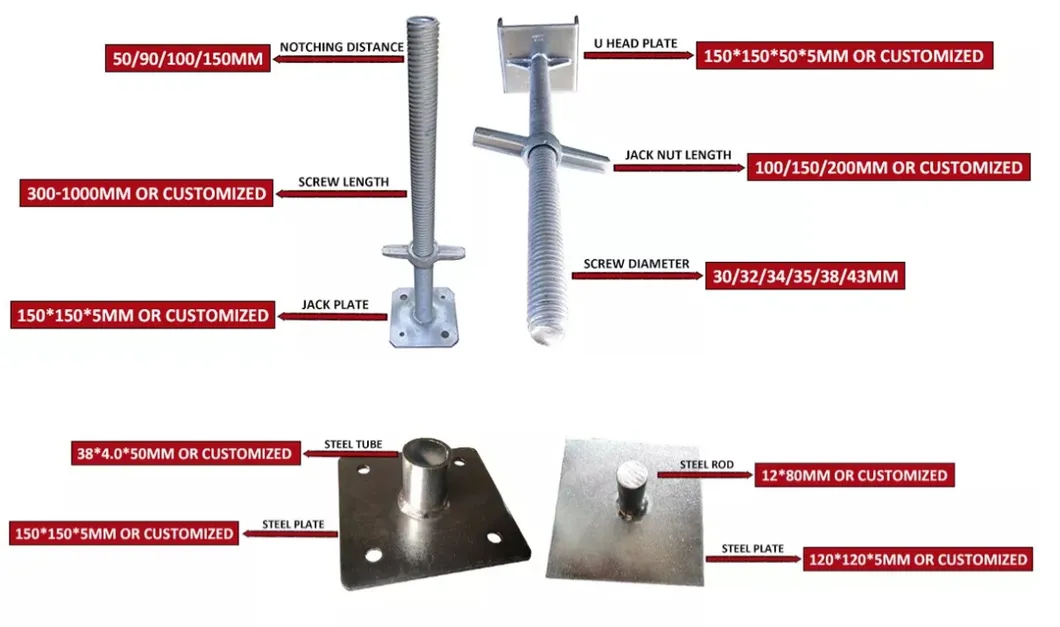

Scaffolding Solid Adjustable Base Jack
Adjustable solid scaffolding screw jack

1.with base plate in 150*150*5mm or customized, screw rod made from high strength steel rod structure
2.with casting or forging scaffolding jack nut

3.for scaffolding system as ringlock scaffolding system, cuplock scaffolding system, kwikstage scaffolding system, tube&fitting scaffolding system and others.

High Load Carrying Capacity Scaffolding Solid Adjustable Base Jack
NameBase Jack TypeSolid Adjustable Base Jack SizeSolid Adjustable Base Jack Weight (KG)
Screw Rod (MM)Base Plate (MM)
Solid Adjustable Base JackSolid30*400120*120*53.1
Solid Adjustable Base JackSolid30*600120*120*54.07
Solid Adjustable Base JackSolid32*400120*120*53.39
Solid Adjustable Base JackSolid32*600120*120*54.5
Solid Adjustable Base JackSolid34*400120*120*53.7
Solid Adjustable Base JackSolid34*600120*120*54.95
Solid Adjustable Base JackSolid35*400150*150*54.17
Solid Adjustable Base JackSolid35*500150*150*54.84
Solid Adjustable Base JackSolid35*600150*150*55.51
Solid Adjustable Base JackSolid38*500150*150*55.48
Solid Adjustable Base JackSolid38*750150*150*57.48
Solid Adjustable Base JackSolid45*400150*150*56.04
Solid Adjustable Base JackSolid45*500150*150*57.18
Solid Adjustable Base JackSolid45*600150*150*58.32
Specifications can be customized according to requirements

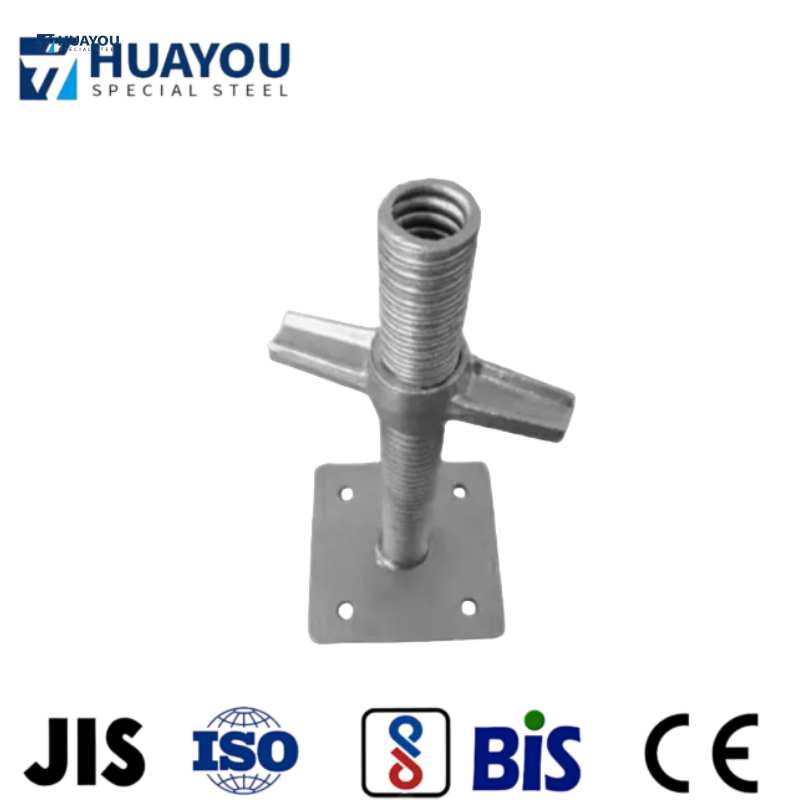

Scaffolding Hollow Adjustable Base Jack

Scaffolding hollow adjustable base jack made by high strength steel structure in hollow tube diameter 35/38/48mm with screw thread. Usually used at the bottom of scaffolding system verticals, it makes the whole scaffold system more stable.

High Load Carrying Capacity Scaffolding Hollow Adjustable Base Jack
NameBase Jack TypeHollow Adjustable Base Jack SizeHollow Adjustable Base Jack Weight (KG)
Screw Rod (MM)Base Plate (MM)
Hollow Adjustable Base JackHollow35*4*600150*150*53.32
Hollow Adjustable Base JackHollow38*4*600150*150*53.5
Hollow Adjustable Base JackHollow48*4*600160*160*64.41
Hollow Adjustable Base JackHollow35*5*400150*150*52.96
Hollow Adjustable Base JackHollow35*5*500150*150*53.33
Hollow Adjustable Base JackHollow35*5*600150*150*53.7
Hollow Adjustable Base JackHollow38*5*500150*150*53.52
Hollow Adjustable Base JackHollow38*5*750150*150*54.55
Hollow Adjustable Base JackHollow45*5*400150*150*53.46
Hollow Adjustable Base JackHollow45*5*500150*150*53.95
Hollow Adjustable Base JackHollow45*5*600150*150*54.44
Specifications can be customized according to requirements

Scaffolding Adjustable U-head Jack

Scaffolding adjustable U-head jack is designed for use in combination with adjustable system supports. The main function of the Scaffolding adjustable U-head jack is to hold the wooden beam in place.

High Load Carrying Capacity Scaffolding Adjustable U-head Jack
NameU-head Jack TypeAdjustable U-head Jack SizeAdjustable U-head Jack Weight (KG)
Screw Rod (MM)Base Plate (MM)
Solid Adjustable U-head JackSolid30*400150*120*50*53.11
Solid Adjustable U-head JackSolid30*600150*120*50*54.08
Solid Adjustable U-head JackSolid32*400150*120*50*53.4
Solid Adjustable U-head JackSolid32*600150*120*50*54.51
Solid Adjustable U-head JackSolid34*400150*120*50*53.71
Solid Adjustable U-head JackSolid34*600150*120*50*54.97
Solid Adjustable U-head JackSolid38*500150*120*50*55.18
Solid Adjustable U-head JackSolid38*750150*120*50*57.17
Hollow Adjustable U-head JackHollow30*3.0*400150*120*50*51.98
Hollow Adjustable U-head JackHollow30*3.0*600150*120*50*52.38
Hollow Adjustable U-head JackHollow32*3.0*400150*120*50*52.04
Hollow Adjustable U-head JackHollow32*3.0*600150*120*50*52.47
Hollow Adjustable U-head JackHollow34*3.0*400150*120*50*52.04
Hollow Adjustable U-head JackHollow34*3.0*600150*120*50*52.47
Hollow Adjustable U-head JackHollow38*4.0*500150*120*50*52.86
Hollow Adjustable U-head JackHollow38*4.0*750150*120*50*53.7
Specifications can be customized according to requirements

Scaffolding Base Plate

Scaffolding base plate is a type of footplated for scaffold system and tube&clamp scaffolding. The spigot for scaffolding base plate can be made from round rod or scaffolding hollow tube. The size of scaffolding base plate can be divided into 50mm, 110mm, 120mm, 140mm, 150mm and so on according to EN74 / BS1139 standard and can customize according to your requirements. Depending on the usage and size of spigot, scaffolding base plate can be in insert type and socket type.

High Load Carrying Capacity Scaffolding Base Plate
NameBase Plate TypeScaffolding Base Plate SizeScaffolding Base Plate Weight (KG)
Rod / Tube (MM)Base Plate (MM)
Scaffolding Base PlateRod12*80120*120*50.62
Scaffolding Base PlateRod12*100120*120*50.63
Scaffolding Base PlateRod12*80120*120*60.73
Scaffolding Base PlateRod12*100120*120*60.74
Scaffolding Base PlateRod12*80150*150*50.94
Scaffolding Base PlateRod12*100150*150*50.95
Scaffolding Base PlateRod12*80150*150*61.11
Scaffolding Base PlateRod12*100150*150*61.13
Scaffolding Base PlateTube35*3.0*50120*120*50.67
Scaffolding Base PlateTube36*3.0*50120*120*50.69
Scaffolding Base PlateTube38*4.0*50120*120*60.85
Scaffolding Base PlateTube38*4.0*100120*120*61.02
Scaffolding Base PlateTube35*3.0*50150*150*51.01
Scaffolding Base PlateTube36*3.0*50150*150*51.02
Scaffolding Base PlateTube38*4.0*50150*150*61.23
Scaffolding Base PlateTube38*4.0*100150*150*61.4
Specifications can be customized according to requirements


Product Show


Factory Tour



Application


Packing And Delivery


Certificate

  • 微信图片_20250323162842.png
  • 微信图片_202503171557201.jpg
  • 微信图片_20250323162848.png
  • 微信图片_20250317155720.jpg

Customer Visit

Customer Reviews

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of  steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
