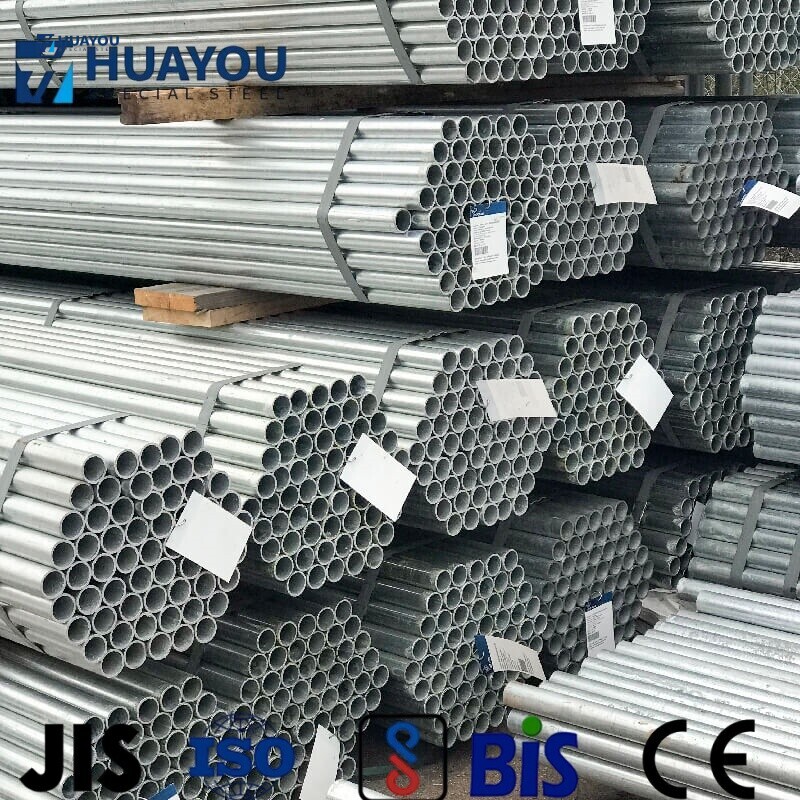

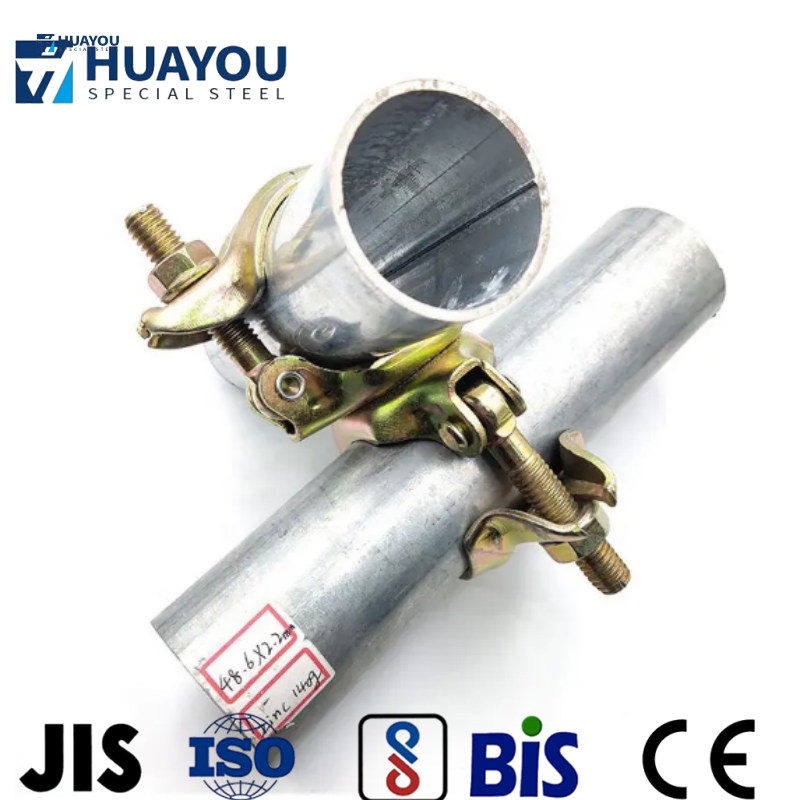

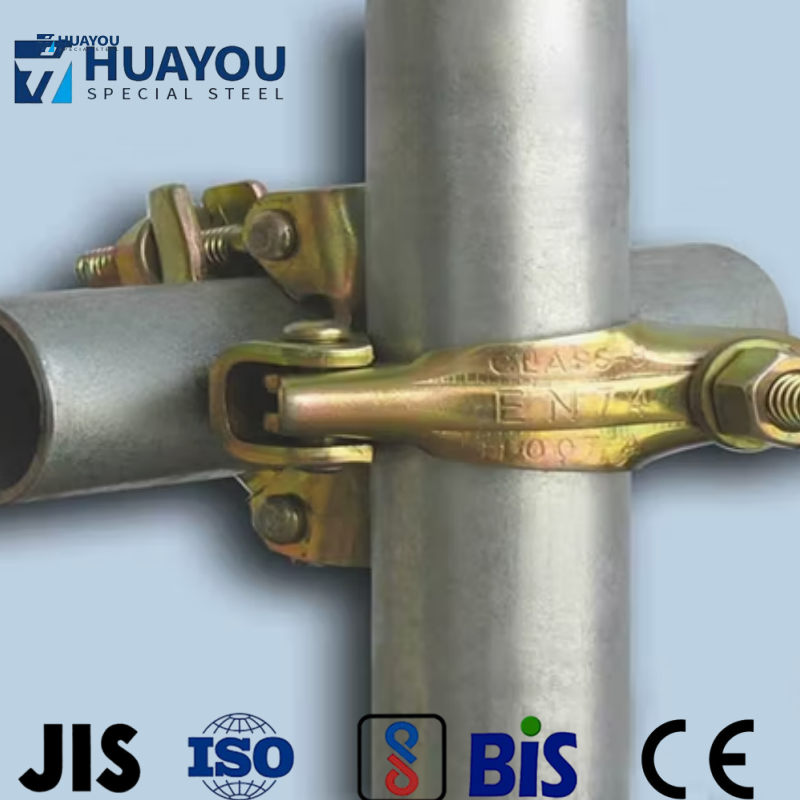

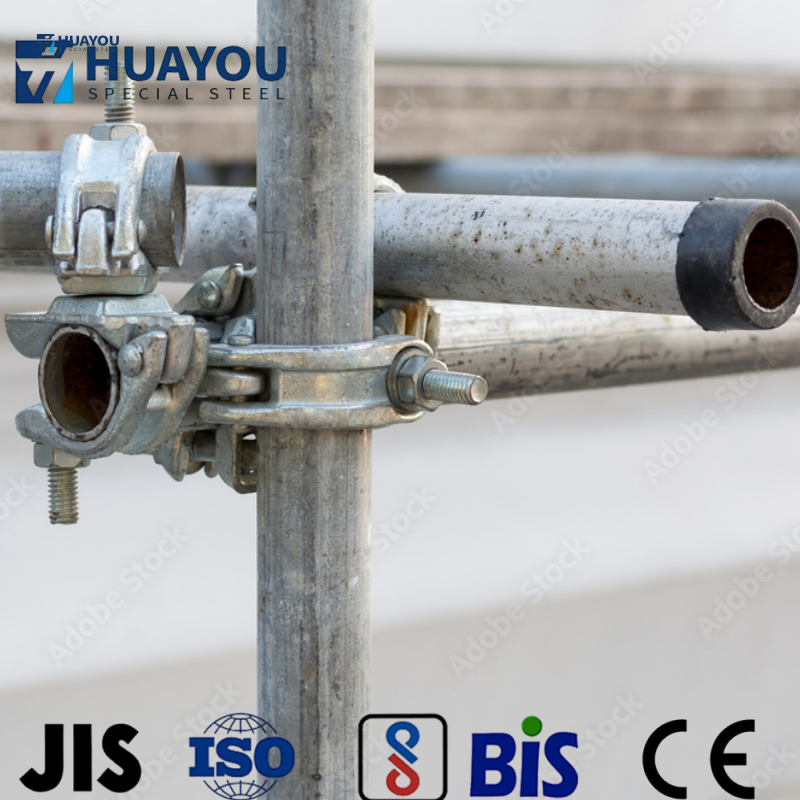

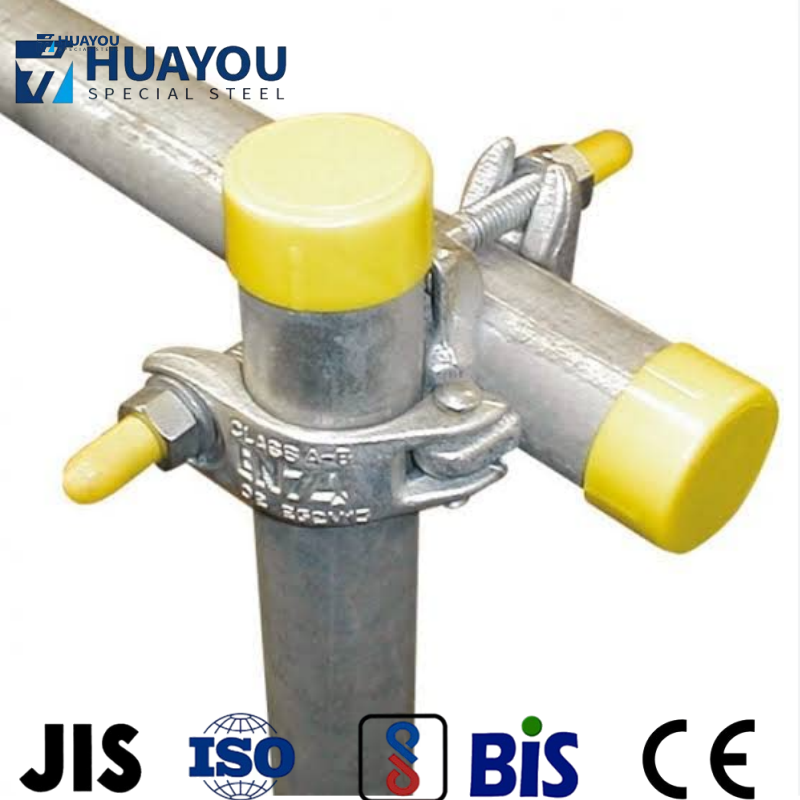

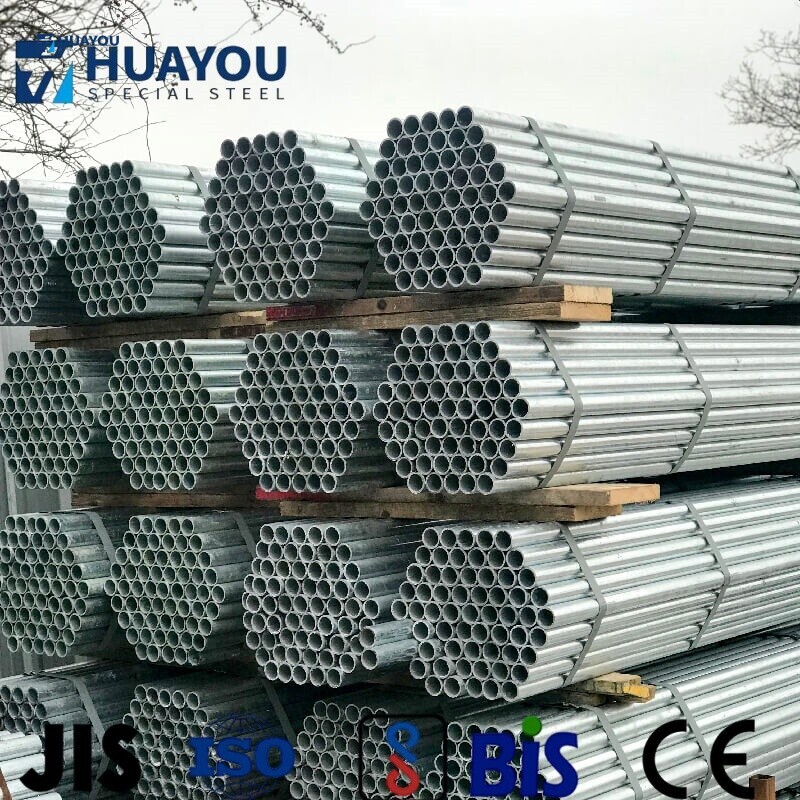

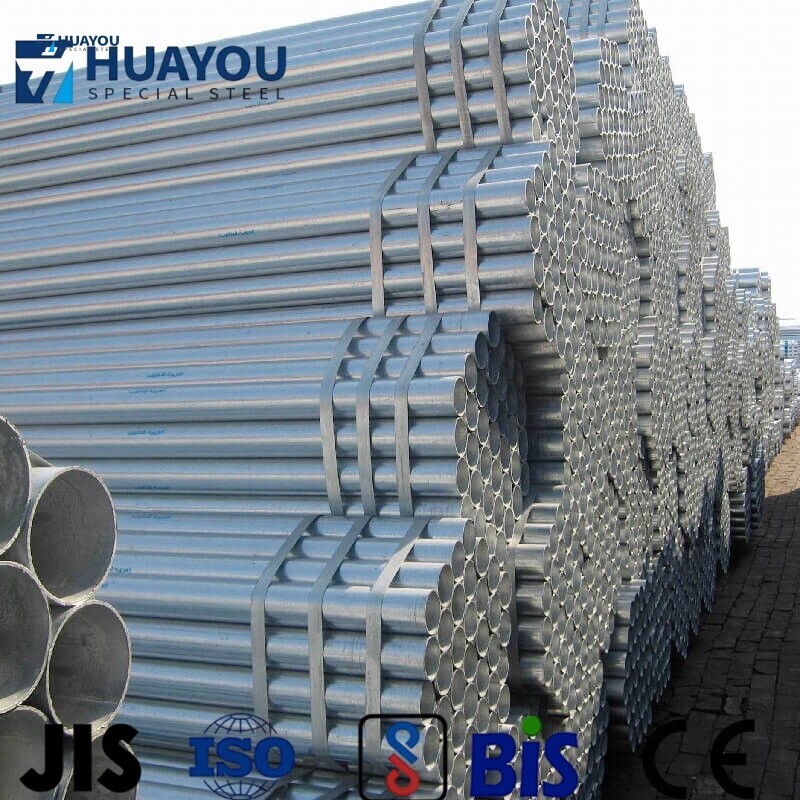

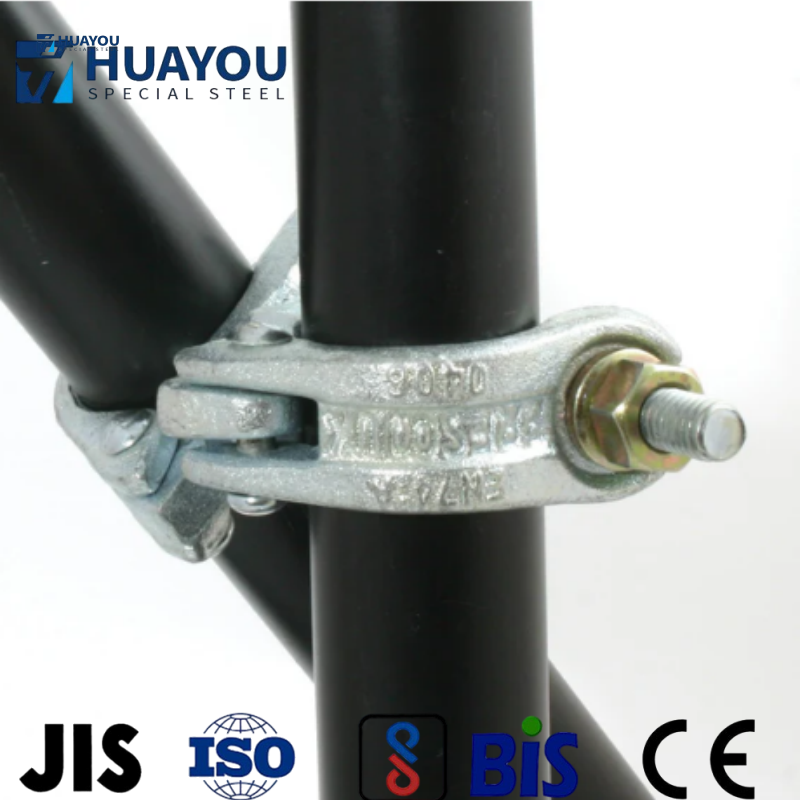

Scaffolding Tube

Scaffolding tubes are metal sections of pipe used to construct a scaffold, which is a support system erected outside of buildings and structures being built. The scaffolding allows workers to access the upper levels of a building or structure safely by climbing these temporary structures and standing on platforms

Different minimum order quantities lead to different product prices
If you need it, please click below to get a free quote

+86 18363561850

+86 18363561850

+86 18363561850

sales1@huayousteels.com

Product Description

Product Name	Scaffold Pipe
Grade	Q195, Q235 SGCC, SGCH,SGC340 SGC400 SGC440 SGC490 SGC570 SGHC SGH340 SGH400 SGH440 SGH490 SGH540 DX51D DX52D DX53D DX54D S220GD S250GD S280GD S320GD S350GD S400GD S500GD S550GD
Standard	API, ASTM, BS, DIN, GB, ASTM A53-2007,BS 1387,EN1219 GB/T3091-2001, BS1387-1985, DIN EN10025, EN10219, JIS G3444:2004, ASTM A53SCH40/80/STD.
Certification	API BIS BV ISO
W.T	1.2-20mm
Length	Standard length is 5.8m 6m and 12m,we can cut length as customer request
Process	Threaded ,Coupling ,Groove

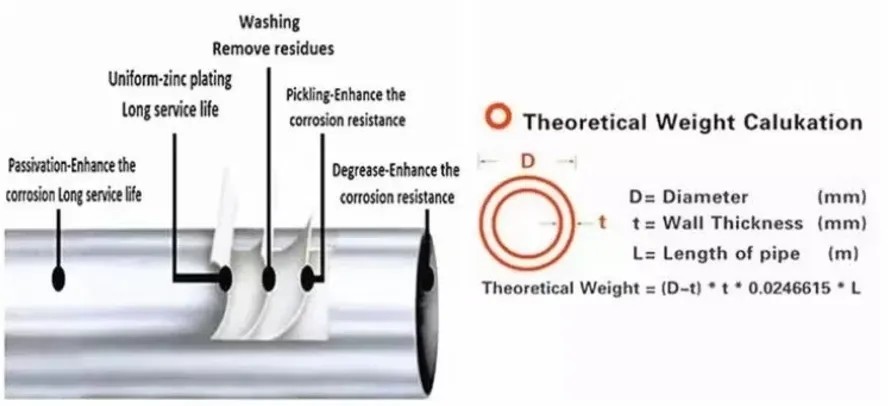

Zinc Coating	Pre Galvanized Pipe : 40g/m² ~275g/m² two side ; Hot Dipped Galvanized Pipe : 210g/m² ~560g/m²
Payment	30% despoit in advance,70% after recepit of B/L copy.100% L/C is available.
Delivery	15-30 days after despoit.
Out Diameter	Pre galvanized:1/2''-4''(21.3-114.3mm). Such as 38.1mm, 42.3mm, 48.3mm, 48.6mm or as customer request.
	Hot dipped galvanized:1/2''-24''(21.3mm-600mm). Such as 21.3mm, 33.4mm, 42.3mm, 48.3mm, 114.3mm or as customer request.
Thickness	Pre galvanized:0.6-2.5mm. Hot dipped galvanized: 0.8- 25mm.
Technique	SSAW/LSAW/ERW Welded

Chemical Composition					Mechanical Properties
C	Mn	Si	S	P	Yield	Tensile	Elongati
C	Mn	Si	S	P	Strength Mpa	Strenth Mpa	-on %
Q195	0.06-0.12	0.25-0.50	≤0.30	≤0.045	≤0.05	≥195	315-430	≥33
Q215	0.09-0.15	0.25-0.55	≤0.30	≤0.05	≤0.045	≥217	335-450	≥27
Q235	0.12-0.20	0.30-0.67	≤0.30	≤0.045	≤0.04	≥235	375-500	≥26
Q345	≤0.20	1.00-1.60	≤0.55	≤0.04	≤0.04	≥345	470-630	≥22

Product Show

Factory Tour

Application

Packing And Delivery

Certificate

Customer Visit

Customer Reviews

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in Shandong province, China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.

Q: What is the MOQ?
A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.

Q: Can you OEM or ODM?
A: Yes, we have a strong developing team. The products can be made according to your request
